Factory Direct Supply: Internal Mixers & Kneading Machines
Rubber Kneader Description
- Mixing chamber features jacket structure with hard chrome plating on internal walls for durability
- Rotors designed with two-edge shearing style for efficient mixing
- Blade top edges and side faces welded with hard alloy, ground, chrome-plated and polished for anti-wear and anti-corrosion performance
- Electrical control system utilizes PLC with comprehensive control, reliable detection and alarm functions

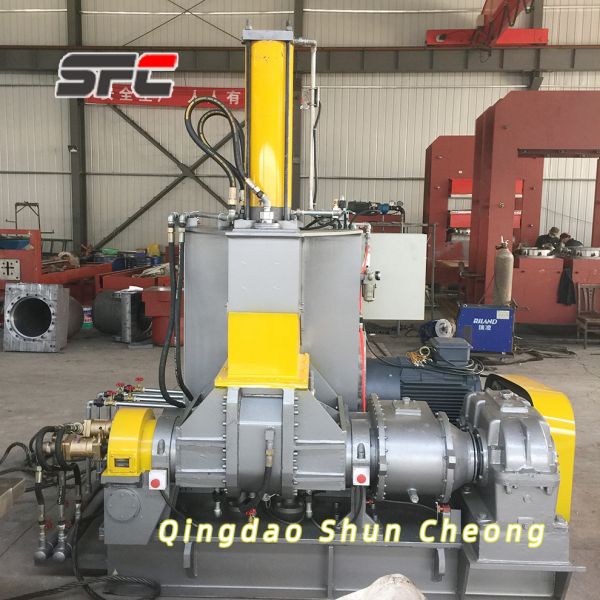

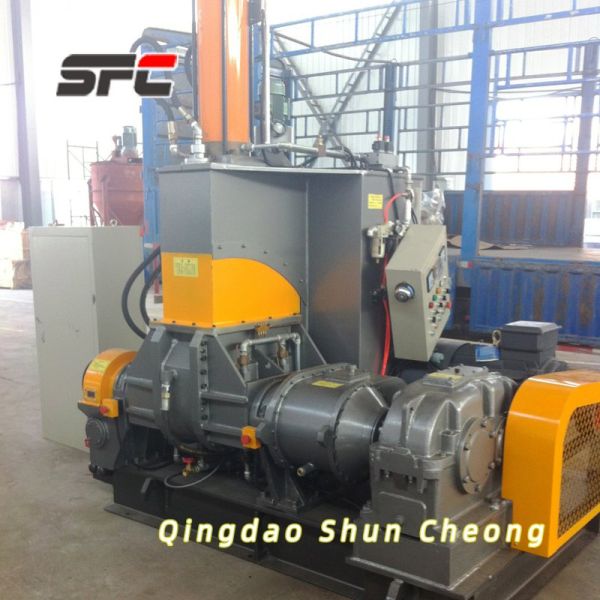

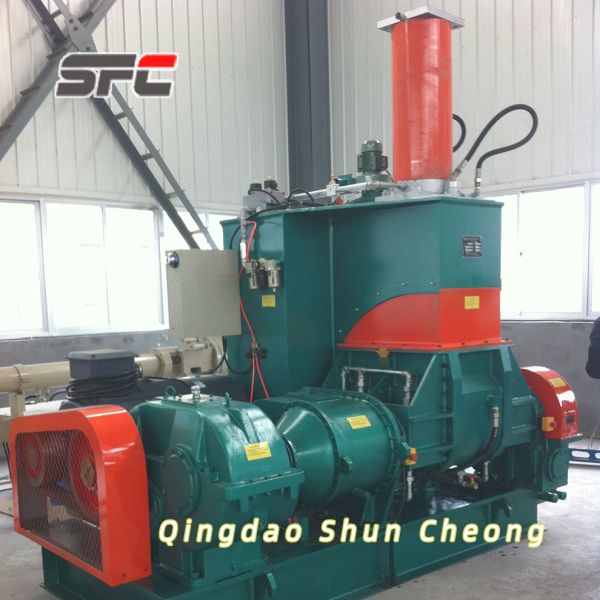

Product Reference Photos
Technical Specifications
| Item |
Unit |
X(S)N-3 |
X(S)N-20 |
X(S)N-35 |
X(S)N-55 |
X(S)N-75 |
X(S)N-110 |
X(S)N-150 |
X(S)N-200 |
| Working Volume of Mixing Chamber |
L |
3 |
20 |
35 |
55 |
75 |
110 |
150 |
200 |
| Driving Motor Power |
KW |
5.5 |
37 |
55 |
75 |
110 |
185 |
220 |
280 |
| Tilting Angle |
° |
140 |
140 |
140 |
140 |
140 |
140 |
11 |
11 |
| Pressure of Compressed Air |
MPa |
0.5-0.8 |
0.6-0.8 |
0.5-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
| Compressed Air Flow Rate |
m³/min |
≥0.3 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
≥2.0 |
≥4.0 |
| Pressure of Cooling Water |
MPa |
0.2~0.4 |
0.2~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
0.3~0.4 |
| Pressure of Heating Steam |
MPa |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
0.5~0.8 |
| Dimensions (LxWxH) |
mm |
2000x906x2200 |
2630x1520x2560 |
3200x1900x2950 |
3230x1927x2958 |
3325x2615x3105 |
4075x2712x3580 |
4250x2750x4106 |
4250x3400x4200 |
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located at Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized manufacturer of rubber machinery and a high-tech backbone enterprise. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Industry Coverage
Our products serve multiple industries including tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing manufacturing, and waste tire recycling.
Main Equipment Portfolio
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan. We have earned praise and long-term cooperation from domestic and international customers.
Quality Commitment
- Every component undergoes strict quality inspection before storage
- All products undergo overload trial running before shipment, including 24-hour pressure testing at 1.25 times rated working pressure for Plate Vulcanizing Press, and 20-minute rubber mixing at 1.1 times rated capacity for Rubber Mixing Mill
- Comprehensive free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Immediate technical support via internet or telephone for quality issues, with on-site engineer repair services when needed
- Factory visits available for conveyor belt, waste tire recycling lines, and rubber products production facilities
