Innovative New Technology Waste Tire Rubber Powder Manufacturing Machine
Product Overview
Advanced automated production line for converting waste tires into high-quality rubber powder with output ranging from 20-60 mesh and capacity of 500-1000kg/h.
Technical Specifications
Model: XKP
Voltage: 380V
Weight: <50 Tons
Power: 10-100kW
Service Life: ≥15 Years
Capacity: 500-1000kg/H
Rubber Powder Size: 20-60 mesh
Production Type: Semi-Automatic/Automatic
Certifications: CE, ISO9001:2008, SGS
Origin: Qingdao, Shandong, China

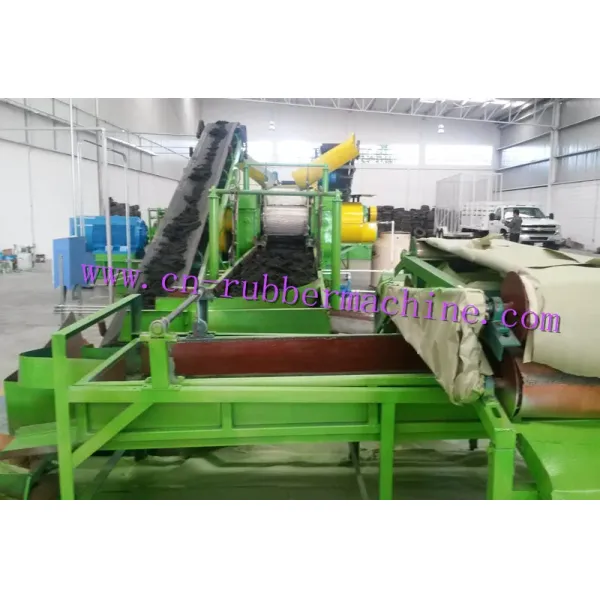

Automated Production Line Process
Waste Tires → Single Hook Debeader → Tire Cutter → Whole Tire Shredder → Rubber Crusher → Oscillating Screen, Conveyor Belt, Magnetic Plants → Fiber Separator → Fine Rubber Powder Pulverizer → Rubber Powder
Rubber Crusher Features
- Designed for crushing rubber and plastic materials
- Rolls made of superior alloy chilled cast iron for enhanced durability
- Hollow roll interior with spray-type temperature control for even surface temperature
- Emergency pull-up equipment for operational safety
- Convenient manual range adjustment with automatic crawl back swing function
- Channel-bottom head design for easy transportation and maintenance
Rubber Powder Applications by Mesh Size
5-10 mesh: Runways, playgrounds, garden paths, sports surfaces, composite rubber floor tiles, artificial turf
10-20 mesh: Rubber floor tiles, plastic runways, sports courts, safety mats, gym mats
30 mesh: Insulation materials, waterproofing, shockproof applications, reclaimed rubber
40 mesh: Waterproof membranes, modified bitumen, carpet padding, various rubber products
60 mesh: Sleepers, rubber sheets, tire inner cushions, automotive applications
80 mesh: Modified asphalt, sealing strips, buffers, rubber components
100 mesh: Automotive tire materials, footwear, sports equipment
120 mesh: Plastic pipe insulation, automotive materials, chemical sealants
200 mesh: Building material coatings, automotive tires, rubber product manufacturing
Technical Parameters
| Type |
XKP-400 |
XKP-450 |
XKP-560 |
| Front roll diameter (mm) |
400 |
450 |
560 |
| Rear roll diameter (mm) |
400 (Groove roller) |
450 (Groove roller) |
510 (Groove roller) |
| Working length of rolls (mm) |
600 |
650 |
800 |
| Front roll surface speed (m/min) |
17.32 |
23.2 |
25.56 |
| Friction ratio |
1:1.38 |
1:1.38 |
1:1.30 |
| Max. nip (mm) |
8 |
8 |
15 |
| Motor power (kw) |
45 |
55 |
75 |
| Dimension (L*W*H) (mm) |
3950*1800*1780 |
4770*1846*1835 |
5064*2284*1978 |
Single Hook Debeader LSJ-1200
Structural Features:
• Alloy welded cutter blade with hard wear-resistant surface
• Protective frame for enhanced safety during wire loop extraction
• Compact integrated motor and reducer design
• Minimal floor space requirement with convenient installation
Application: Pulling wire loops from waste tire beads
